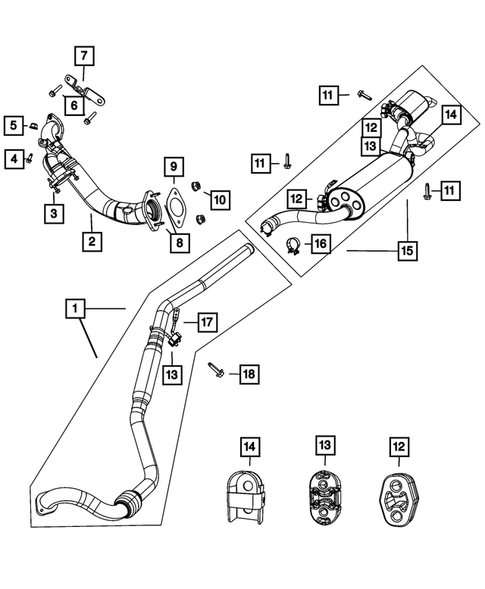

Exhaust System for 2010 Chrysler Town & Country
No.
Part # / Description / Price
Price
1
2
MSRP $96.45
$66.36
4
Hex Flange Head Bolt, Mounting
Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8x1.25x20.00. Engine Oil Level Indicator Tube To Intake Manifold
MSRP $3.65
$2.47
MSRP $3.65
$2.47
5
Nut Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8. hard top to B pillar
MSRP $8.80
$6.04
MSRP $8.80
$6.04
6
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M10x1.5x50. Structural Collar To Cylinder Block. Late Production
MSRP $13.30
$9.09
MSRP $13.30
$9.09
7
Exhaust Manifold Bracket, Front Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Exhaust Hanger
8
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: [M8X1.25X40.00]. Exhaust Manifold To Front Exhaust Pipe
9
Crossunder Pipe Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Two Hole [One Round Hole One Triangle Hole
MSRP $26.20
$18.06
MSRP $26.20
$18.06
10
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 3.XL Mid V6 Engine. 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.20
$2.88
MSRP $4.20
$2.88
11
Hex Head Bolt And Coned Washer Mopar
Mopar Description: M8x1.25x35. Fastens A/C Condenser Line To Condenser
MSRP $6.45
$4.31
MSRP $6.45
$4.31
12
Exhaust Support Isolator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: On Muffler And Resonator Assembly Used With Heat Shield
MSRP $17.55
$12.02
MSRP $17.55
$12.02
13
Exhaust Support Isolator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: On Front Exhaust Pipe And Converter Assembly
MSRP $28.20
$19.32
MSRP $28.20
$19.32
14
Heat Shield Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Exhaust Support Isolator
15
Exhaust Muffler And Resonator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 4.0L V6 SOHC ENGINE.
Description: EXHAUST
16
Exhaust Clamp Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Hot Downpipe to Cold End Inlet Pipe
17
Catalytic Converter Bracket, Front Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Body Side
18
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X55.00. Timing Chain Cover To Cylinder Block
MSRP $7.00
$4.77
MSRP $7.00
$4.77

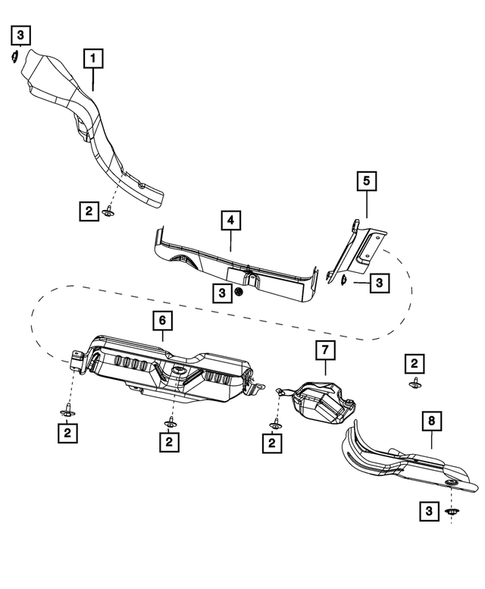

No.
Part # / Description / Price
Price
1
MSRP $144.00
$98.90
3
Stamped Hex Flange Nut Mopar
Mopar Description: M5x1.60. Heat Shield to Front Floor Pan. Front Heat Shield to Front Floor Pan
MSRP $11.05
$7.59
MSRP $11.05
$7.59
4
MSRP $24.05
$16.39
5
MSRP $56.90
$39.04
6
MSRP $82.55
$56.75
7
MSRP $23.00
$15.70
8
MSRP $45.45
$31.17

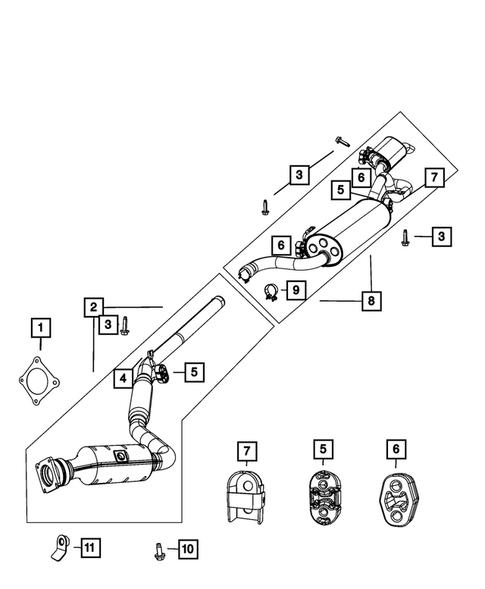

No.
Part # / Description / Price
Price
3
Exhaust Support Isolator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: On Front Exhaust Pipe And Converter Assembly
MSRP $28.20
$19.32
MSRP $28.20
$19.32
4
Hex Head Bolt And Coned Washer Mopar
Mopar Description: M8x1.25x35. Fastens A/C Condenser Line To Condenser
MSRP $6.45
$4.31
MSRP $6.45
$4.31
5
Exhaust Support Isolator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: On Muffler And Resonator Assembly Used With Heat Shield
MSRP $17.55
$12.02
MSRP $17.55
$12.02
6
Heat Shield Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Exhaust Support Isolator
7
Exhaust Muffler And Resonator Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 4.0L V6 SOHC ENGINE.
Description: EXHAUST
8
Exhaust Clamp Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Hot Downpipe to Cold End Inlet Pipe
10
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 3.XL Mid V6 Engine. 4.0L V6 SOHC ENGINE.
Description: M6x1.00x30.00. Front Support Bracket To Front Cover
MSRP $11.30
$7.76
MSRP $11.30
$7.76
No.
Part # / Description / Price
Price
3
Hex Head Bolt And Coned Washer Mopar
Mopar Description: M8x1.25x35. Fastens A/C Condenser Line To Condenser
MSRP $6.45
$4.31
MSRP $6.45
$4.31
No.
Part # / Description / Price
Price
3
Hex Head Bolt And Coned Washer Mopar
Mopar Description: M8x1.25x35. Fastens A/C Condenser Line To Condenser
MSRP $6.45
$4.31
MSRP $6.45
$4.31
